Sveaverken F100 Auto Steer System

Sveaverken F100 Auto
Steer System

Your Precision is Our Mission

Precision Steering for Optimal Farming Results

Precision is key to achieving higher yields and improved efficiency. Sveaverken F100 Auto Steer System makes it easier with industry-leading accuracy and flexible features.

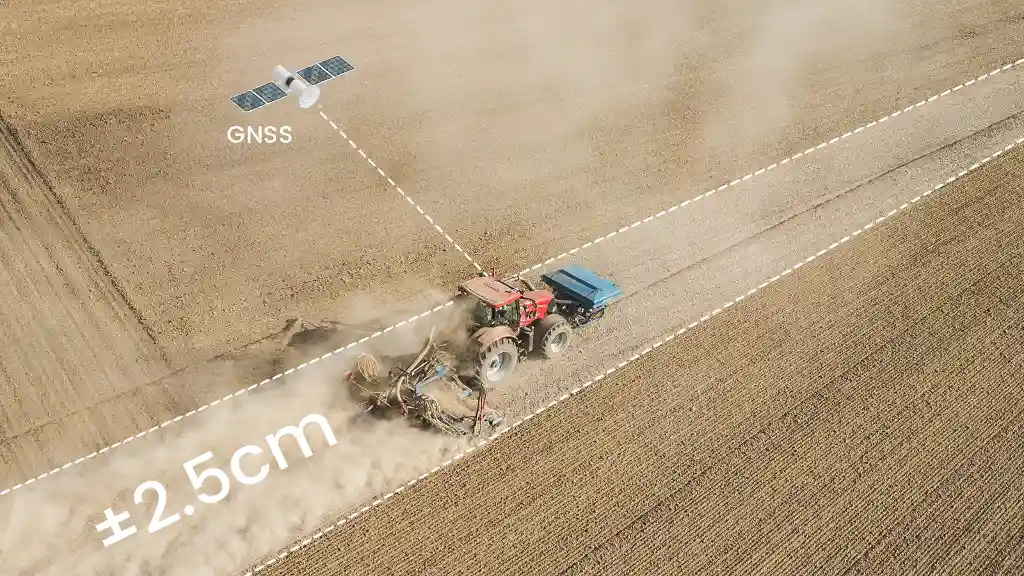

Accuracy every time. ±2.5cm.

Ditch the guesswork and achieve high precision with the F100’s ±2.5cm accuracy. The Sveaverken F100 autosteer keeps you on track, even in low-light conditions. Now you can focus on what matters – a productive and efficient harvest!

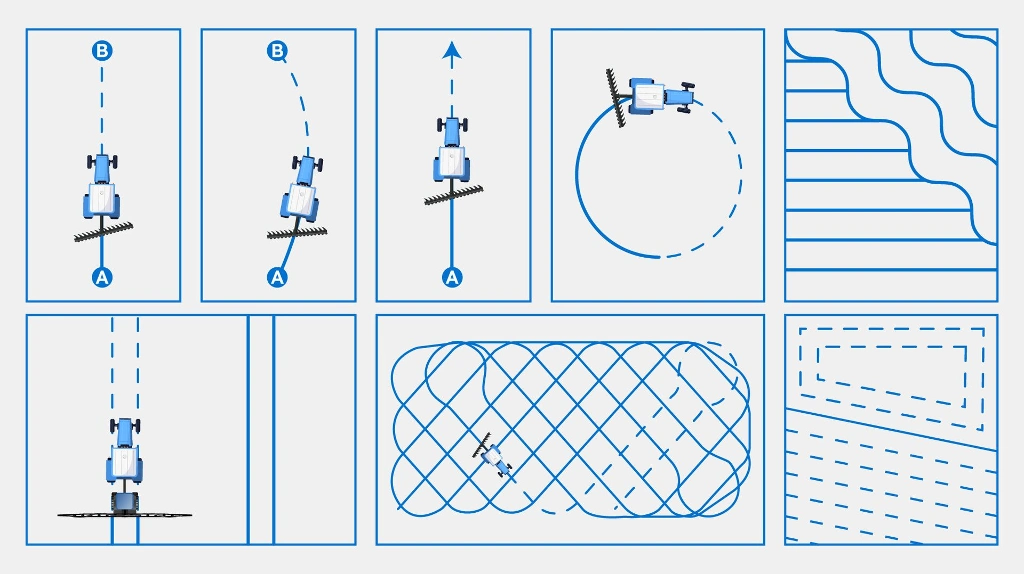

Your lines, your way. Flexible guidance lines.

The F100 steering system gives you complete control over your tractor’s guidance lines, offering a variety of customizable options to perfectly suit your specific field and farming operation needs.

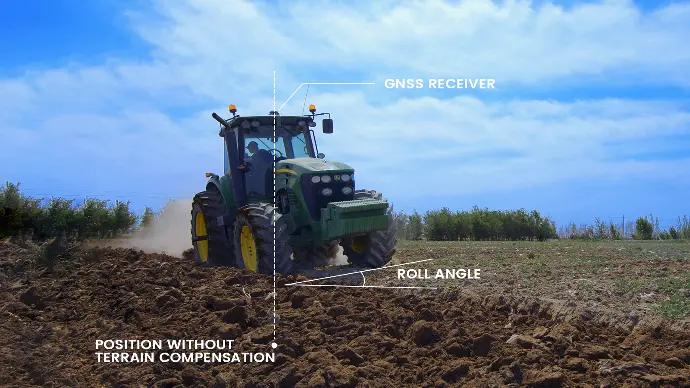

Built to conquer any terrain.

Don’t let uneven ground throw you off course. The F100 tractor guidance system has automatic terrain compensation, adjusting for slopes and bumps to keep your lines accurate. Maximize yield, even on challenging terrain, with precision in every field condition.

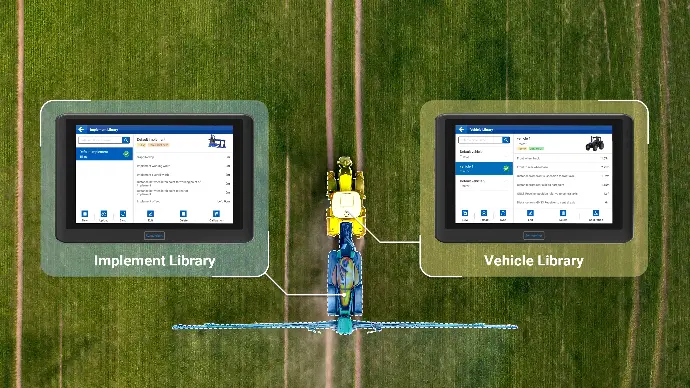

Integrates seamlessly.

Forget messing with settings every time you switch implements on the control terminal. The F100’s Implement Library and Vehicle Library integrate all your tractor equipment details, including tractors, planters, sprayers, and more. With just a few clicks, you’ll access the right settings for precise guidance, saving you time and ensuring accuracy every time you head out to the field.

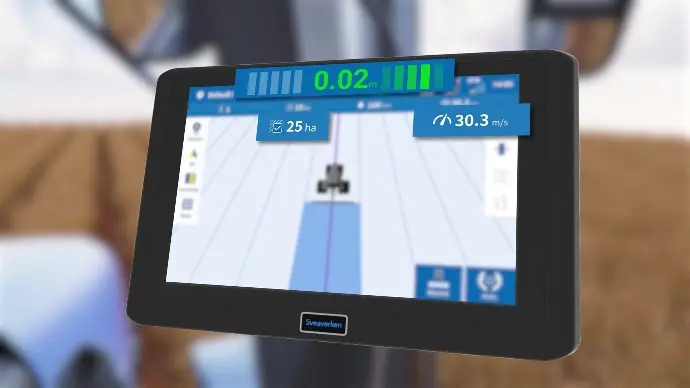

Simple and intuitive design.

Keep things clear and easy with a user-friendly interface designed for busy farmers. There’s lots to love with F100 autosteer, including quick switching between guidance lines, 2D or 3D views, all in a modern, easy-to-use package. That’s a promise!

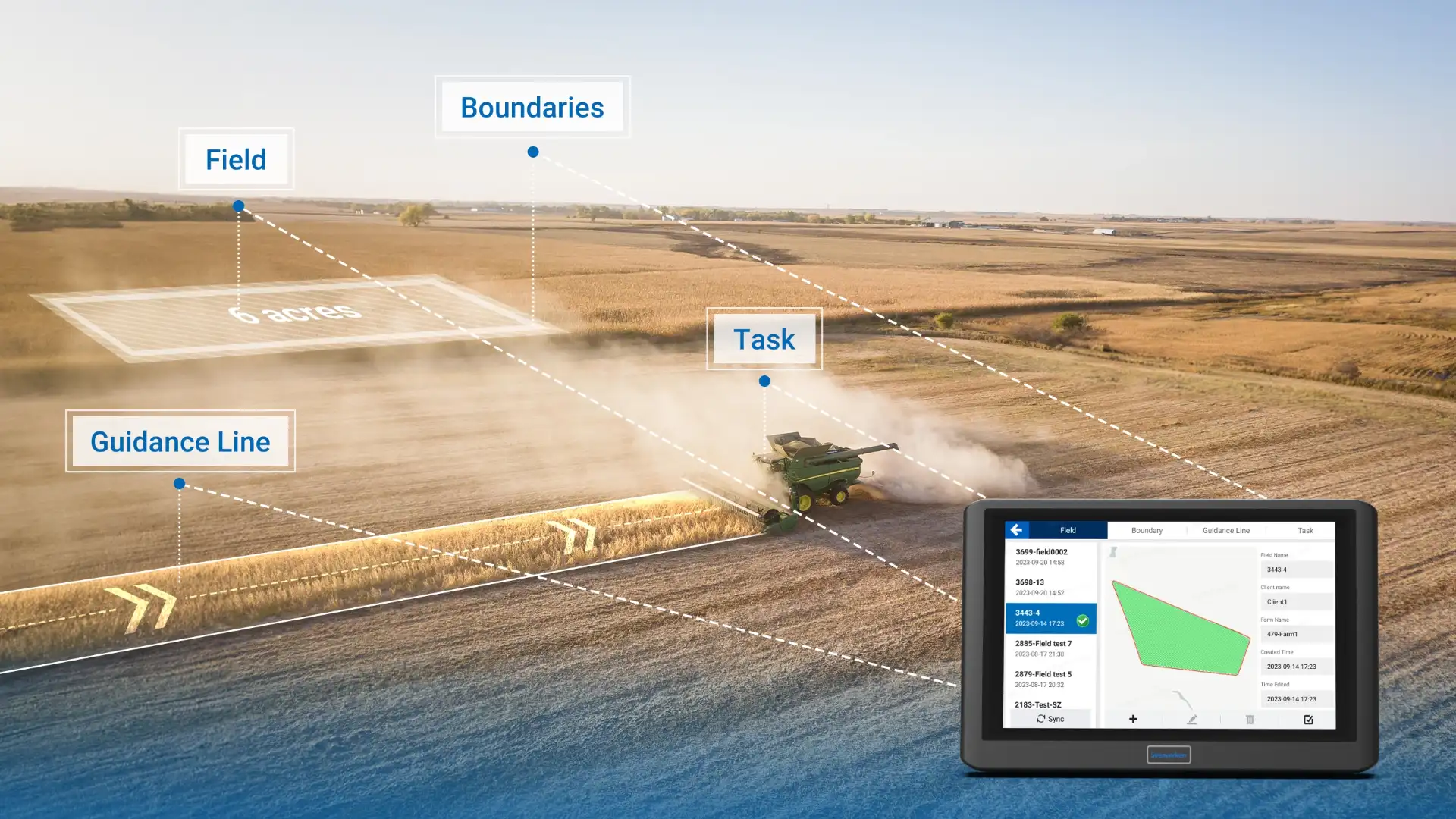

Smart field management keeps you organized.

Don’t waste time sketching on paper. F100’s field management system lets you create profiles for each field, storing boundaries, guidance lines, and completed tasks. Access historical information to plan future work and track progress over time. Analyze your field data to make smarter choices about planting, spraying, and harvesting. Our precision farming solutions make everything easy and efficient.

*Advanced mode needed

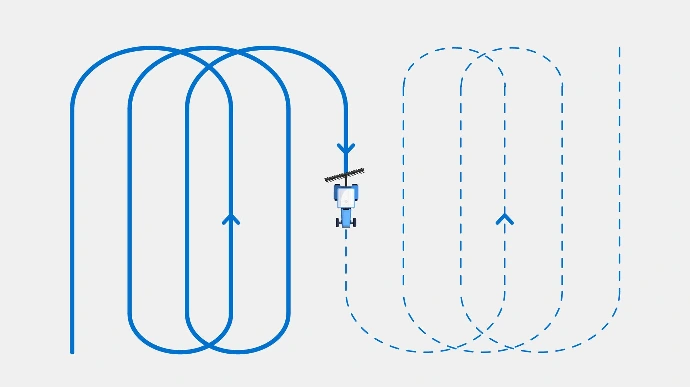

Smooth, easy u-turns with precision.

Basic U-turn: Both the Ω-shape and fish-tail turning paths provide efficient ways for one-click turnaround at limited space in the field. Smart U-turn: Go hands-free from start to finish with Smart U-turn.

Specifications

01. Tablet

Size

275×180×40 mm

Display

10.1'' inches >500nits LED screen;
1280 × 800 pixels

Power Supply

9V ~ 36V

Operating Temperature

-20 ℃ ~ 70 ℃

Storage Temperature

-40 ℃ ~ 85 ℃

Waterproof & Dustproof

IP 65

02. GNSS Receiver

Frequency

GPS: L1C/A、L2P (Y)/L2C、L5
GLONASS: G1, G2
BDS: B1I, B2I, B3I
Galileo: E1, E5a, E5b
QZSS: L1, L2, L5

Size

162 × 78 mm

Operating Temperature

-20 ℃ ~ 70 ℃

Storage Temperature

-40 ℃ ~ 85 ℃

Waterproof & Dustproof

IP 66

03. Electric Steering Wheel

Size

410 mm

Power Supply

12V/24V

Maximum Torque

20 Nm(12V)/30 Nm(24V)

Waterproof & Dustproof

IP 65

“Need network-independent accuracy? See the F100C RTS Auto Steer System. For a larger display and advanced ISOBUS, see the F200 series.”

FAQs

Frequently Asked Questions

1. What accuracy does F100 provide?

F100 delivers ±2.5cm accuracy, keeping you on track even in low-light conditions.

2. Does F100 include terrain compensation?

Yes. F100 automatically compensates for slopes and bumps, keeping guidance lines accurate on uneven ground.

3. Can F100 work with multiple tractors and implements?

Yes. F100's Implement Library and Vehicle Library store your equipment details, so switching between tractors, planters, and sprayers takes just a few clicks.

4. Does F100 include field mapping and management features?

Yes. F100's field management system lets you create profiles for each field, storing boundaries, guidance lines, and completed tasks for future planning (Advanced mode required).

5. What U-turn options does F100 offer?

F100 offers Basic U-turn (Ω-shape and fish-tail paths for one-click turns) and Smart U-turn for fully hands-free turning.

6. What's the difference between F100, F100C RTS, and F200?

F100 is our entry-level auto-steer system; F100C RTS adds
network-independent accuracy for remote areas with poor signal; F200 is a full hardware upgrade with a larger display and expanded ISOBUS support.
