Path Assist for Your Implements

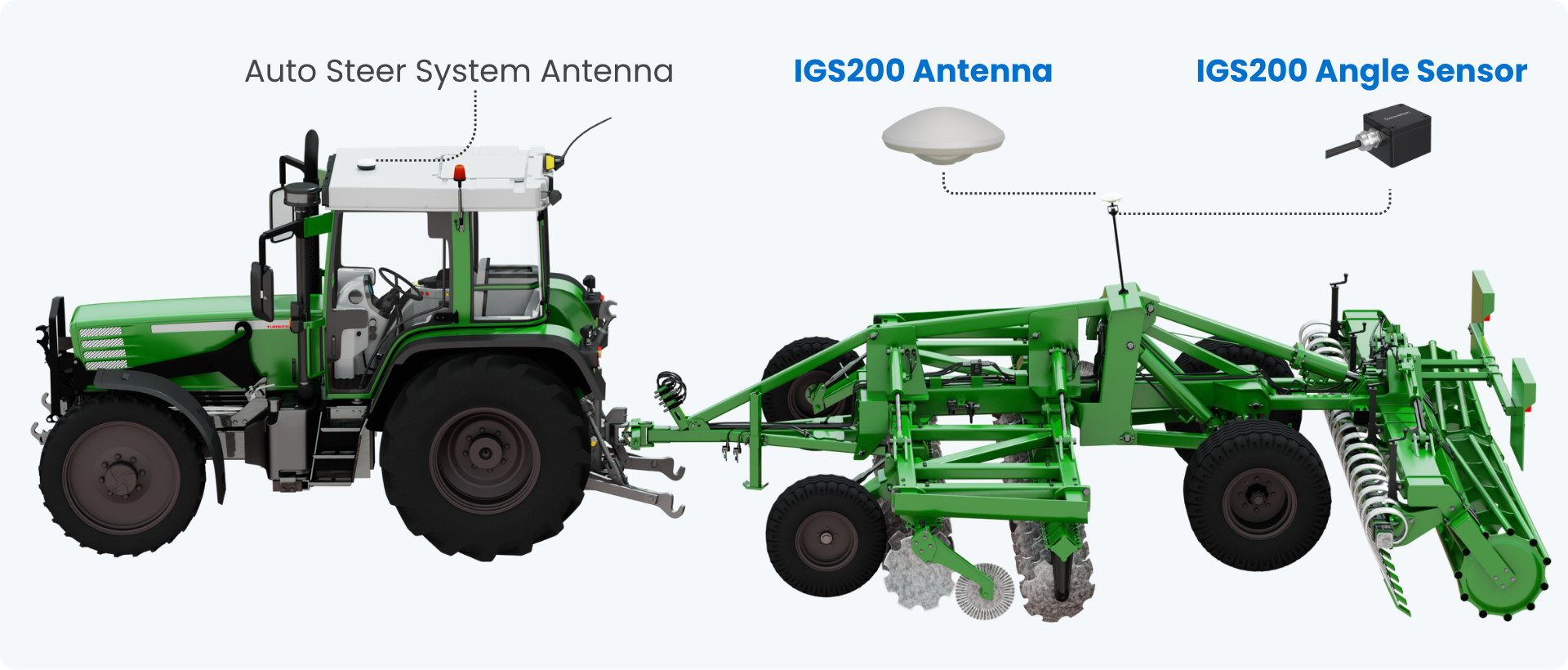

The IGS200 is a precision implement guidance system for towed or single-point-hitch implements. It integrates smoothly with the tractor’s autosteering system to automatically correct implement position, reducing drift, swaying, overlaps, and omissions.

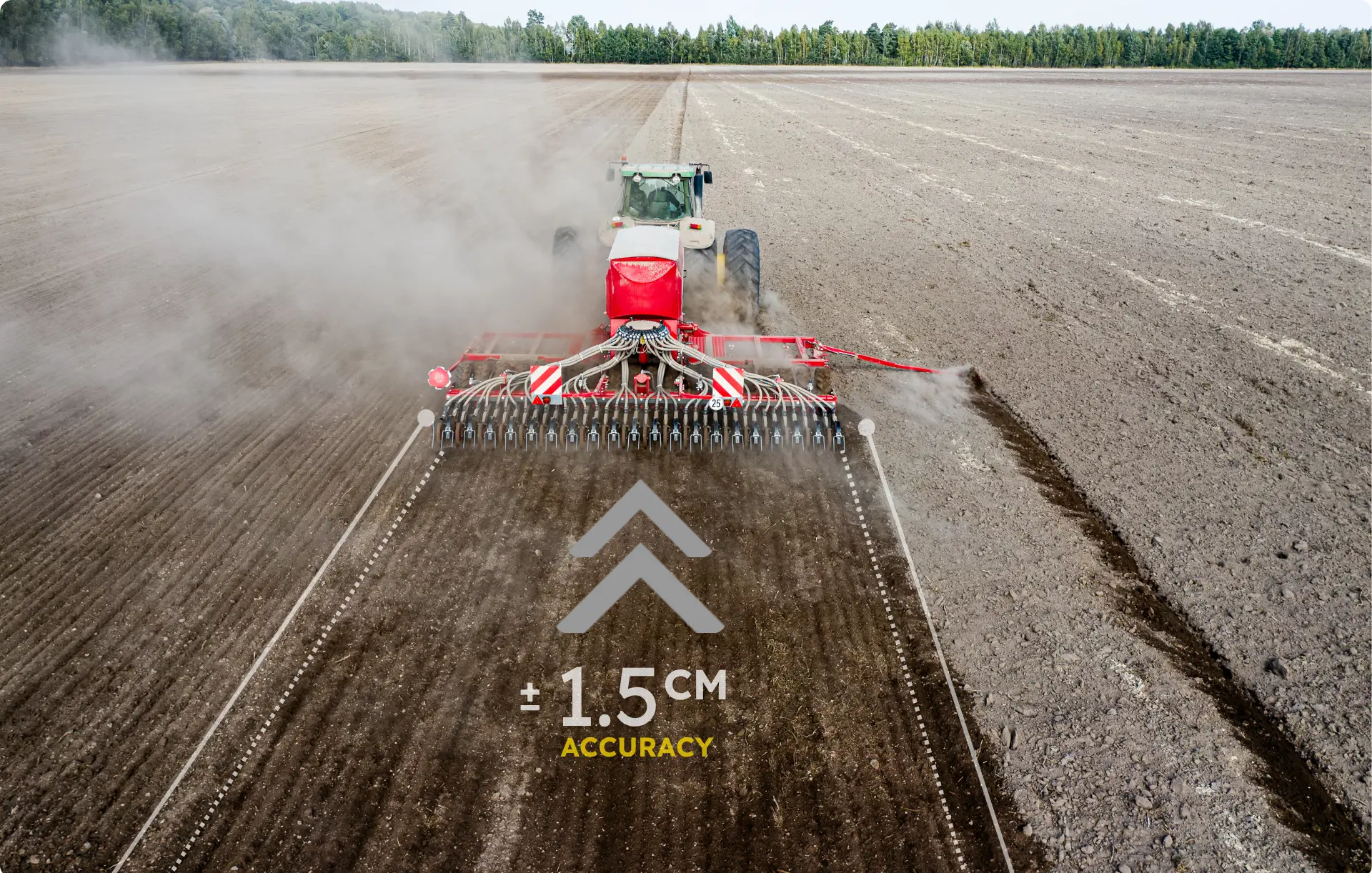

±1.5 cm Precision Higher Land Utilization
The IGS200 maintains overall precision within ±1.5 cm, helping keep operational losses below 1% while increasing land utilization by more than 3%.

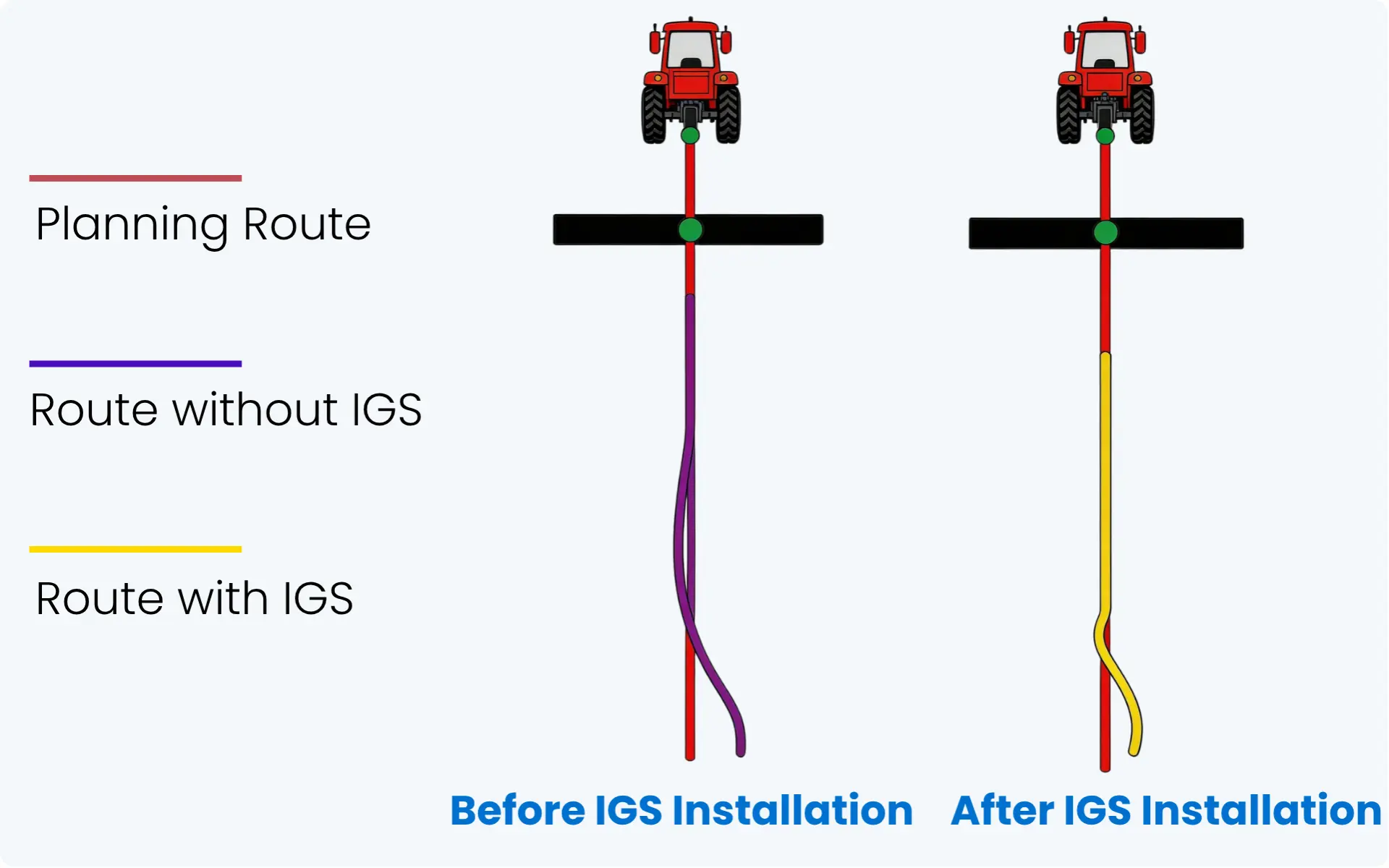

50% Drift Reduction Accurate Rows
The IGS200 works in real time with your tractor’s autosteering system, actively correcting implement position to reduce drift by over 50%, keeping your implement precisely on path with consistent rows.

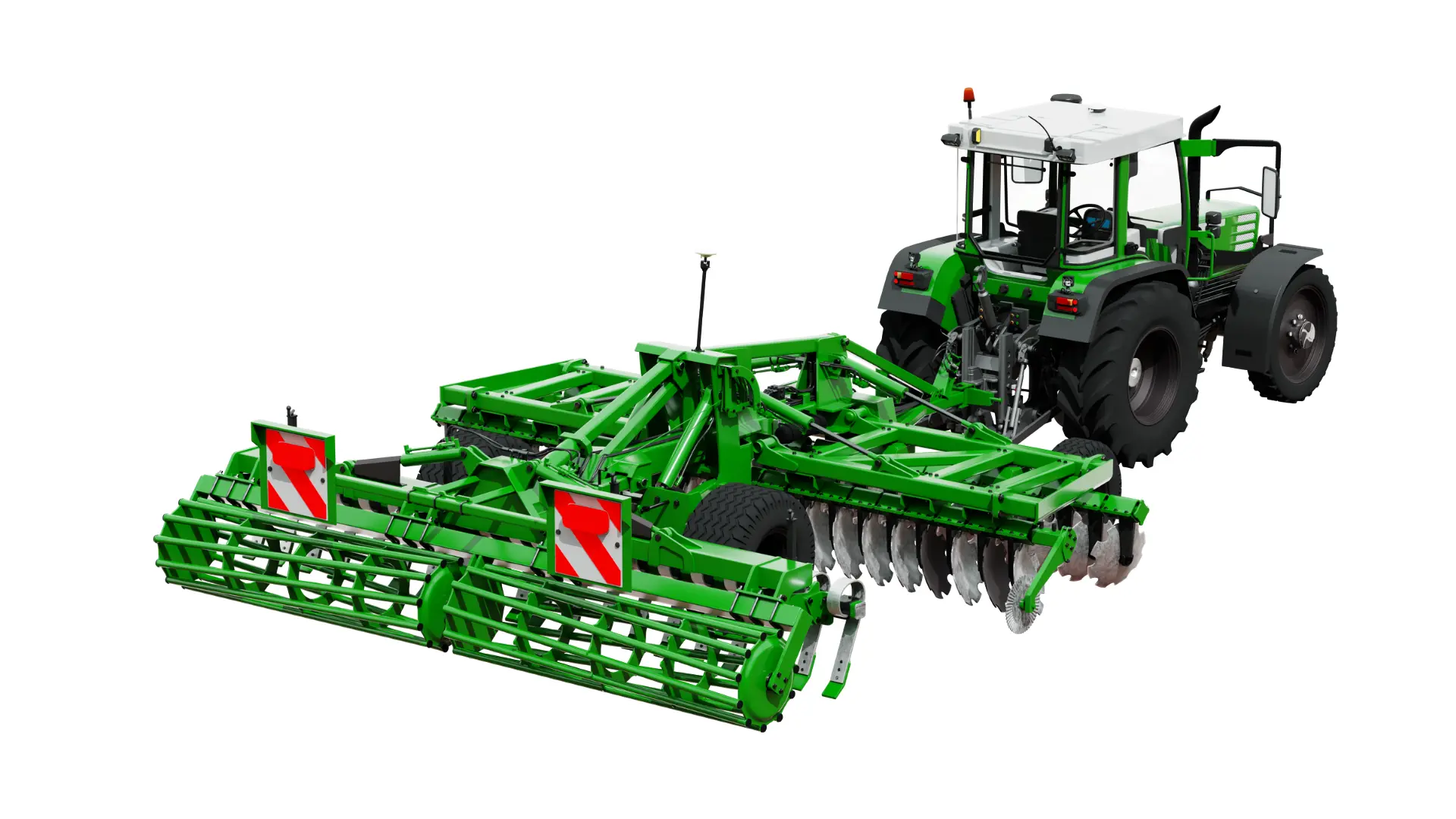

Precision for Any Trailed Implement
IGS200 delivers ±1.5 cm accuracy on any tow-behind or single-point-hitch implement, whether you’re using no-till planters, cultivators, seeders, or other trailed implements. Advanced algorithms detect and correct sway in real time, keeping rows consistent and reducing crop damage.
Easy to Install Simple to Switch
The IGS200 features a modular design and an easy to remove bracket for fast installation, simple maintenance, and convenient transfer between implements. A single operator can complete software guided calibration in minutes, and calibration data for each implement only needs to be saved once, allowing smooth switching without repeated setup.

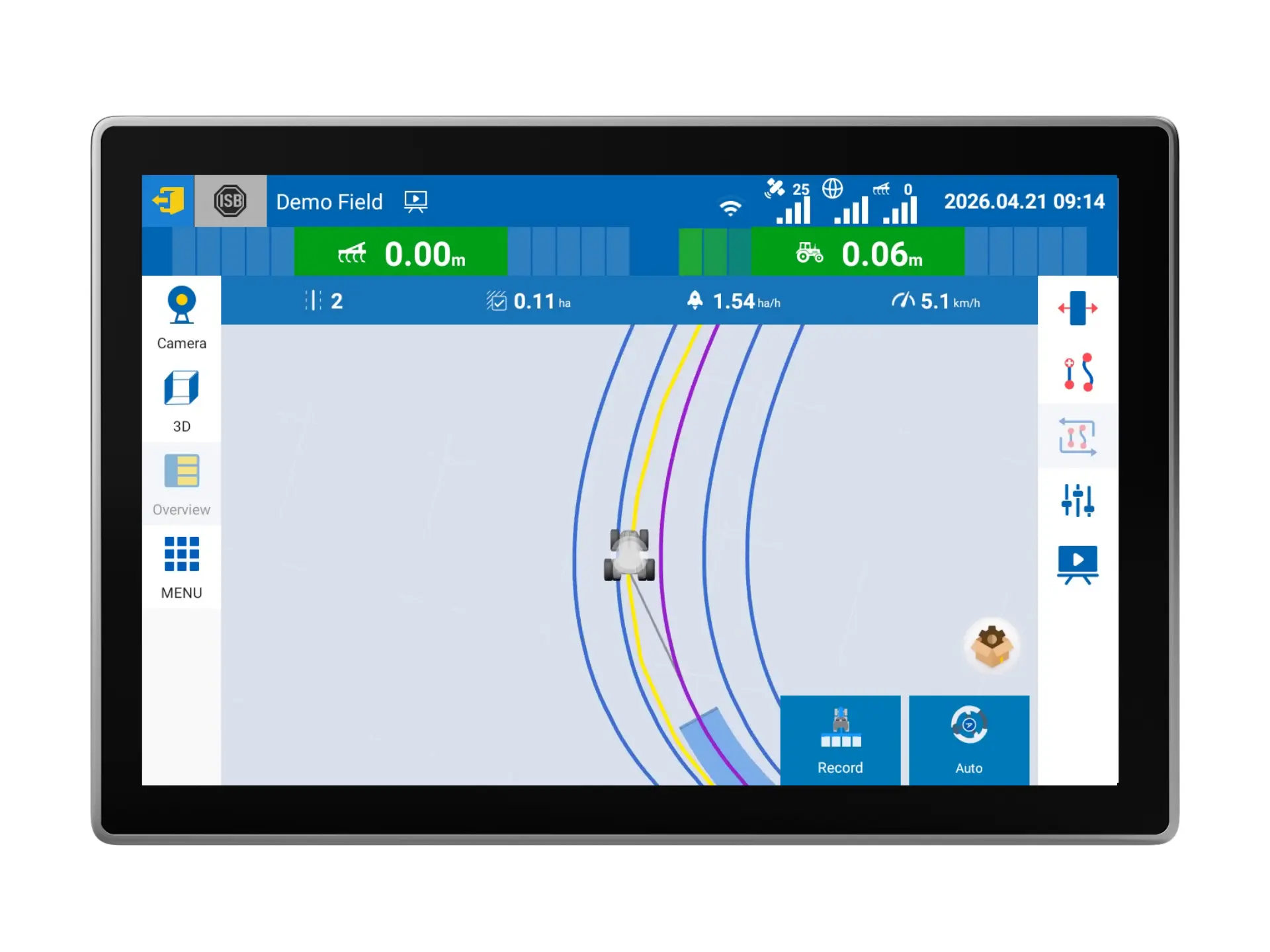

One Screen Synchronised Guidance
With the Sveaverken Auto Steer System, just activate implement guidance, create your profiles, and calibrate. Both tractor and implement paths are shown on one screen for real-time monitoring, giving you full, easy control over the entire job.
Specifications
RTK Positioning Accuracy
± 1.5 cm
Operating Temperature
-40°C to +85°C
Gyroscope Sensor Supply Voltage
5V
GNSS Antenna Supply Voltage
3.3 to 12V
Power Consumption
0.4W
Angular Measurement Range
±1000 °/s
Note: These parameters apply specifically to the Sveaverken IGS200 Implement GNSS Sensor. When the sensor is used with a SveaverkenAuto Steer System, the system’s settings will take precedence.
*The IGS200 is currently compatible only with the Sveaverken F200 and F200 Max Auto Steer Systems.
