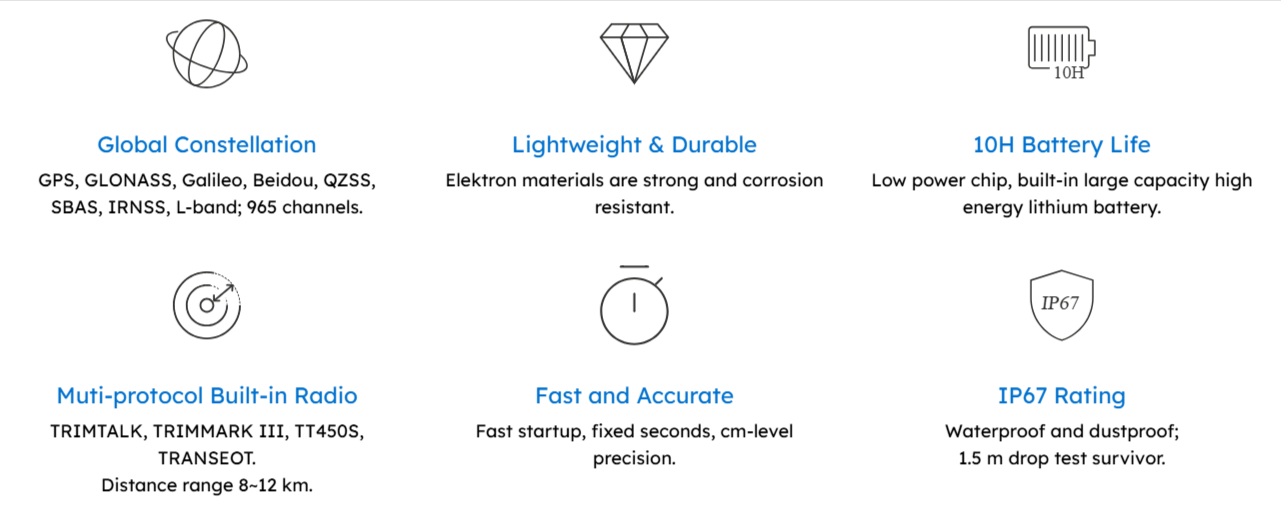

Incorporating advanced components and antennas, Sveaverken V1 base station supports GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS, providing 965 channels across all constellations. With wireless connectivity, it offers fast startup and instant positioning, ensuring stable signals and high-precision location services, making it a reliable choice for precision agriculture users.

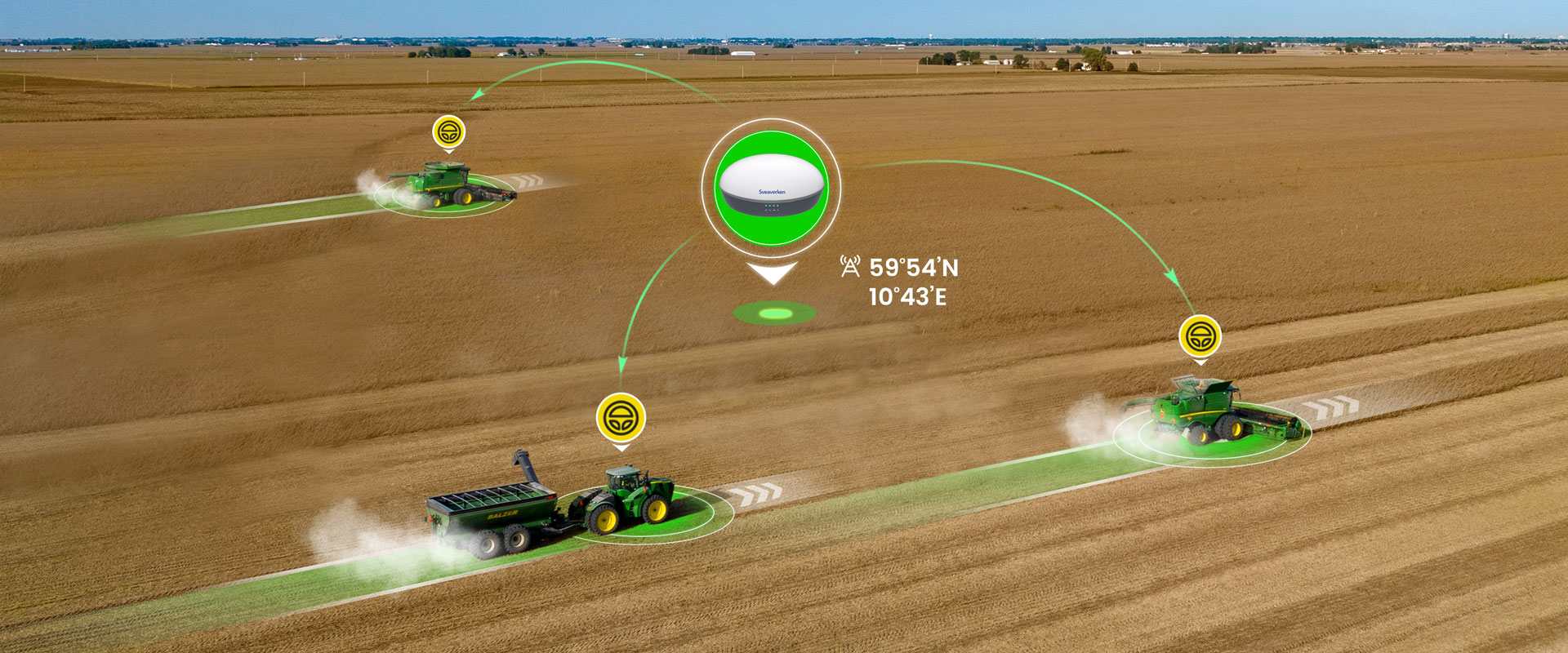

Set up Base Station by known points
Input the known coordinates to set base station. If you need to continue working on the second day, only input the coordinates from yesterday so that all coordinates will be in the same system. You will get more accurate work performance. The tractor will follow yesterday’s working area to continue yesterday’s work, which will prevent the tractor from driving out of the working area.

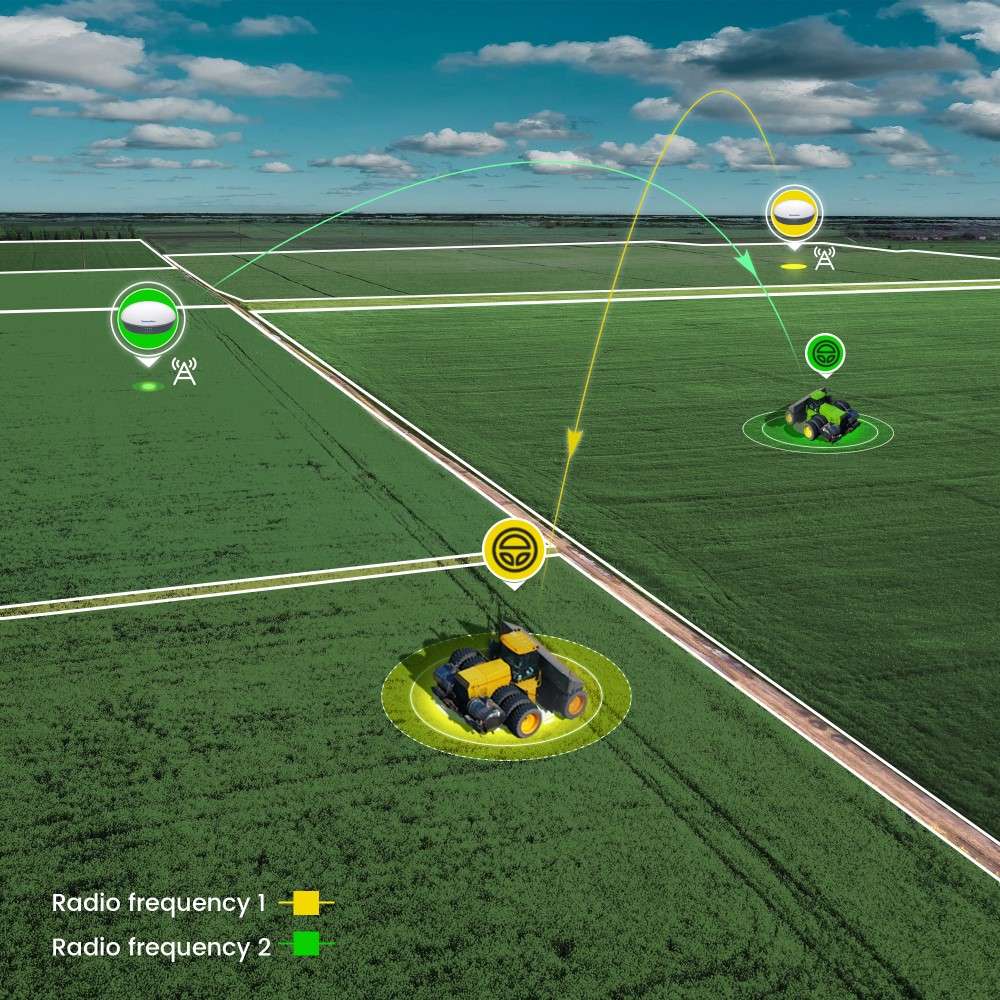

User-defined radio frequency
Supported by inner radio, you can set any needed radio frequency. It will be more flexible so that the multi-base station same frequency issue can be avoided.

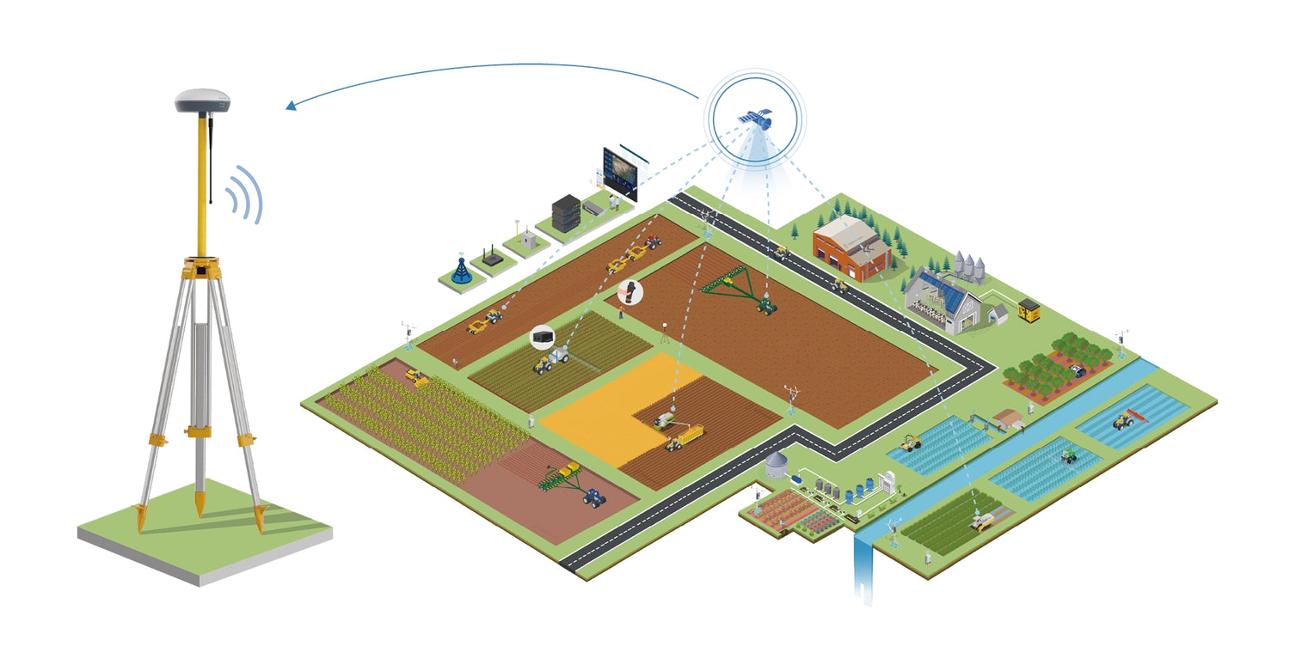

Wide Range and stable transmission
Sveaverken V1 base station has multiple protocol internal radios. It contains Trimtalk, Trimmark III, TT450S and TRANSEOT. And the built-in UHF radio can provide a working range wider than 5km and stable correction data. At the same time, one base can provide high precision service for multiple users.
Specifications
Channels
965
GPS
L1C/A, L2P, L2C, L5, L1C
BDS-2
B1I, B2I, B3I, B1C, B2a, B2b
BDS-3
B1I, B3I, B1C, B2a, B2b
GLONASS
G1, G2, G3
Galileo
E1, E5a, E5b, E6
QZSS
L1C, L2, L5, L1C/A
SBAS
L1C/A, L5*
IRNSS
L5*
L-band*
Battery Capacity
6700 mAh
Base
10 h
Rover
10 h
Wireless Connectivity Protocol
BT4.2 & BLE
Power consumption
0.5 W/1 W
Frequency
410 MHz ~ 470 MHz/902 MHz ~ 928 MHz (Optional)
Protocal
TRIMTALK, TRIMMAK III, TT450S, TRANSEOT
Size & Weight
Ø162 × 86 mm; 1 kg
IP rating
IP67
Rated input voltage
12 V DC
Input voltage range
5 V ~ 36 V
Operating temperature
-30 ℃ ~ 60 ℃
Storage temperature
-40 ℃ ~ 75 ℃
Humidity
95%
Single positioning (RMS)
Horizontal 1.5 m, vertical 3 m
RTK (RMS)
Horizontal ± (8+1 × 10-6 × D) mm,
vertical ± (15+1 × 10-6 × D) mm
vertical ± (15+1 × 10-6 × D) mm
Update rate
Raw observation data: 1,2,5,10 Hz
Real-time positioning data: 1,2,5,10 Hz
Real-time positioning data: 1,2,5,10 Hz
Data format
RTCM2.X, RTCM3.X, RINEX
